Perforated sheet panelling and hand press cylinders
Perforated sheet metal plates and hand press cylinders significantly expand the flexibility of an assembly table's possible applications.

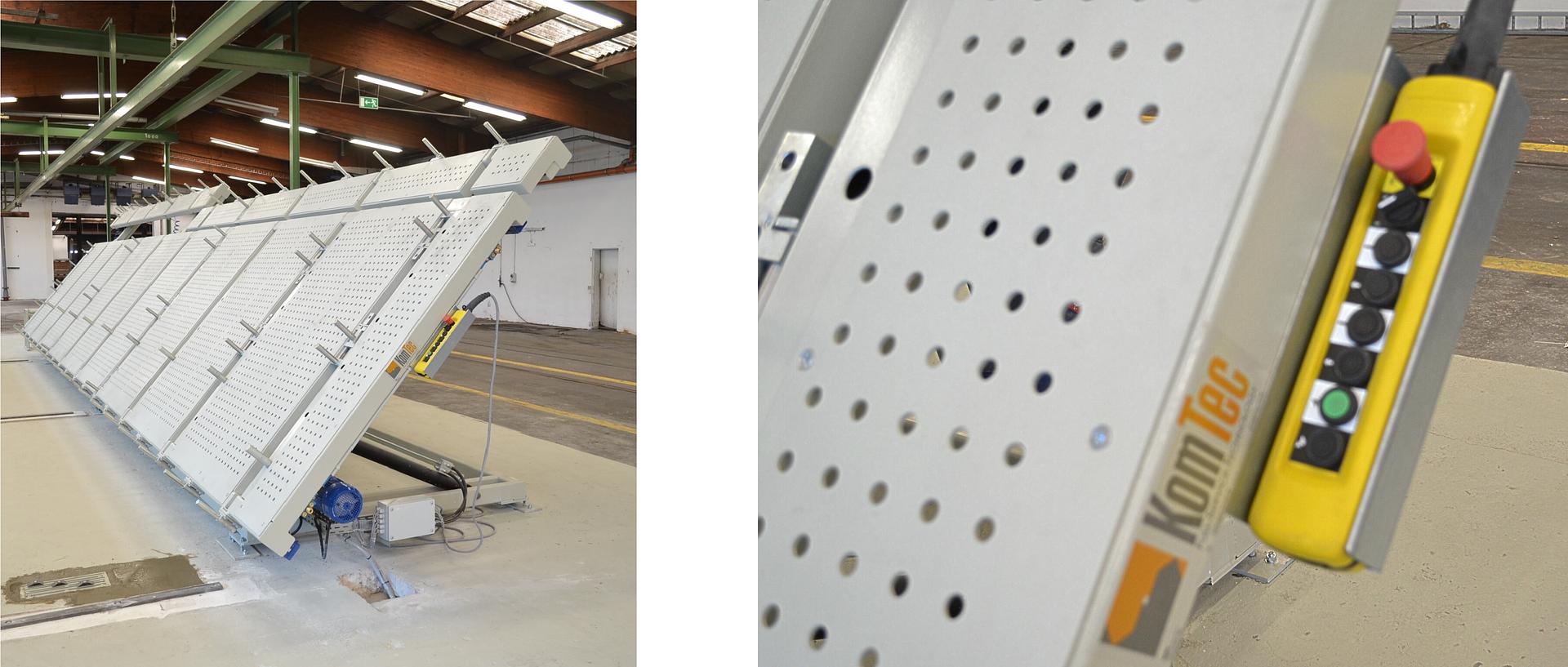

Perforated sheet panelling
The plate is mounted over the entire surface of the table, as far as technically possible. It is made of aluminium, is 4 mm thick and has a hole diameter of 17 mm and a hole spacing of 65 mm.
A slotted bolt is attached to the underside of the hand press cylinder so that the slot in the bolt engages with the plate.
The plate is powder-coated.
Other special tools are available.

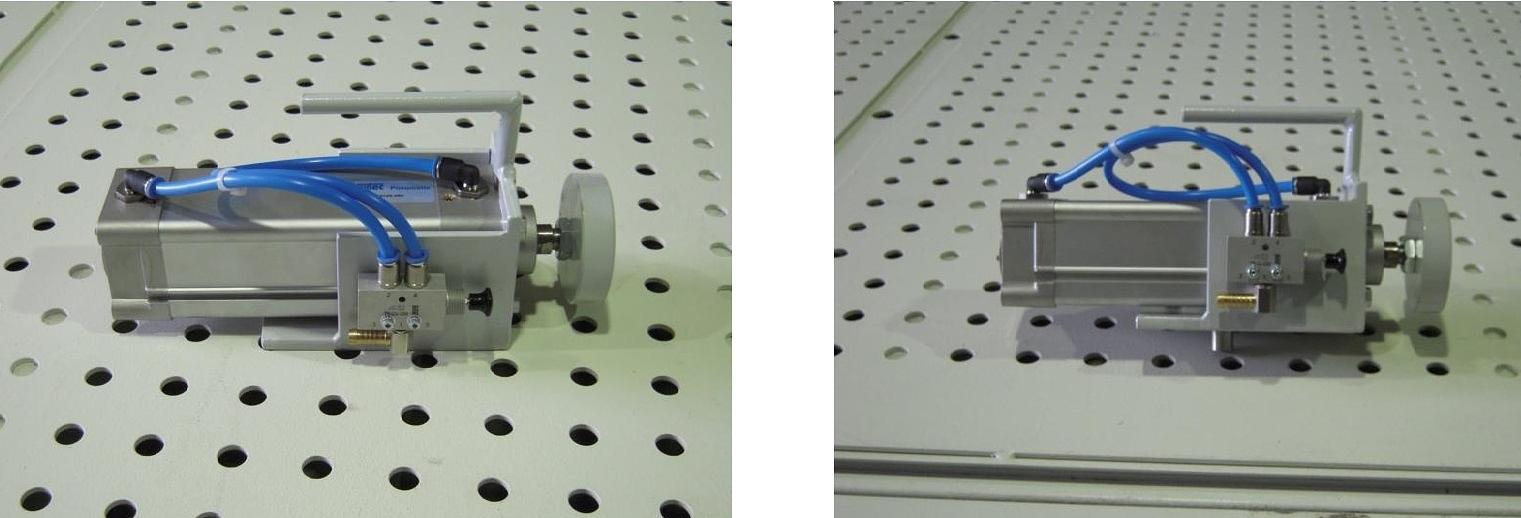

Hand press cylinders
Hand press cylinders can be mounted on an assembly table with perforated sheet metal plating.
The hand press cylinders lock into place on the plate using a slotted bolt. It can be rotated 360 degrees on the plate. This allows all frames and special parts to be clamped.
